Cellular Plastic Horizontal Flammability Testing Equipment ISO 9772 Standard
ISO 9772 Foam Plastic Horizontal Burning Test Machine for flame behaviour equipment according ISO 9772
Application: This tester is a flammability tester for cellular plastic material by using a small-scale laboratory screening procedure for comparing the relative burning characteristics of horizontally oriented, small cellular plastic specimens having a density less than 250 kg⋅m −3 determined in accordance with ISO 845, when exposed to a small-fame ignition source.
This machine is used for quality assurance and limited product evaluation of cellular plastic
materials under controlled laboratory conditions, and is not intended to assess the fre behaviour of e.g. building materials or furnishings under actual fre conditions.
Features:
- Combustion chamber more than 0.8 CBM.
- Large view window, easy to observe sample burning.
- Burner angle can be adjustable
4. Humboldt Tirrill burner made in USA inner diameter 9.5±0.3mm
5. Top exhaust unit to venting the burnt gas of combustion.
6. Imported flowmeter.
7. Auto record and manual operation of timer for test time.
8.High Pulse igniter for auto ignition
9. Precision pressure gauge and PLC show the gas pressure and flow.
10.PLC+7" touch screen for display for control, test, calculate and data showing.
11. Test time and ignition time setting on PLC interface.
12.Linear burning rate (V) PLC calculating,PLC showing and saving.
13.Test standard specified reference value show on interface for comparing.
Standards: Foam material horizontal flame test:HF-1,HF-2,HBF,ISO 9772.
Main specification:
1. Burner Specification: diameter Ф 9.5 mm, tube length is 100 mm.
2. Burner wing top: having an opening of internal length 48 mm, internal width is 1.3 mm.
3. Flame height:38 mm
4. Support gauze Φ0.8 mm stainless steel wire, mesh each side 6.4 mm, 215 mm long, 75 mm wide, high 13 mm; Beside equipped with 300 mm steel rule, minimum scale of 1.0 mm;
5. Support gauze holder: consists of two hob, belt can be adjusted to the required angle and the height of the fixture, sample network located at 175 mm above the bottom of the box body.
6. Illuminometer: measure the illuminance within the test chamber ≤20lx.
7. Timer: 0 ~ 99.99 s can be arbitrary set, accuracy of ≤1s.
8. Weight: Approx. 70KG
9.Dimension: 1,100(W)×690(D)×900(H)mm
10. Power: AC 110 or 220V, 50/60Hz, 1A
Product Tags:
|
|

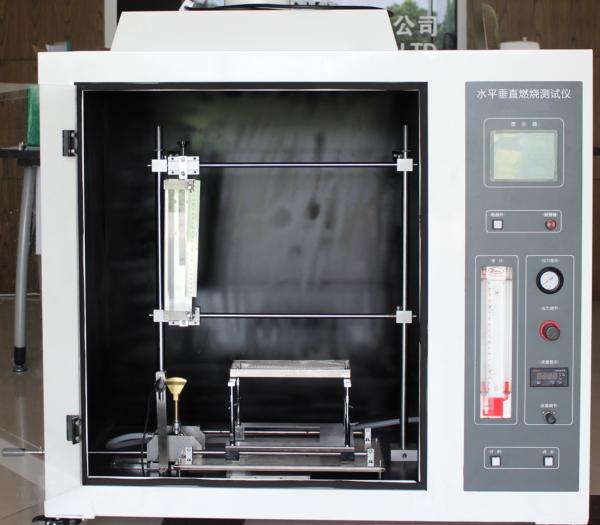

ISO 9772 PLC Touch Screen Horizontal Flammability Tester For Plastic Images
|
